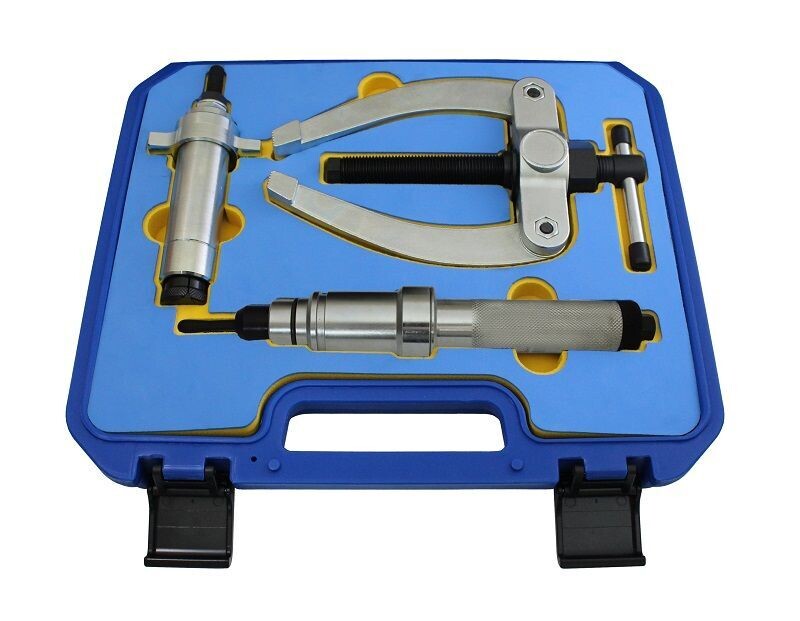

VOLVO / MACK Truck Injector Sleeve Remove / Install Kit

Improved New Push through Type:
Oem Part Number 88800513, For Stainless Cup Part Number, 21401136,85137065,21515329,85124741
Kit Contains: 88800387, 9986174, 88800513

Operation:
Removal:
Put the 2-1 puller onto cylinder to reach sleeve.
Screw top nut to make puller expanded and retain sleeve, and then install 2-2 puller ring, and assemble No.1 puller, screw top nut to take out the old sleeve.
Application: VOLVO (FM)(FM12) MACK MP7, MP8, MP9 and MP10
Only kit in the market made to work on both stainless steel and brass cups.
This kit includes High-Quality Aftermarket Equivalents of 9986174 replaces Flywheel bearing remover 9986173 and 9986179 and unit injector remover 9990006.
Fuel Injector Remover, 88800387 Fuel Injector Sleeve/Tube/Cup Remover, 88800467 Installer includes 88800457 & 88880054, and 88800196 Installer.
It will remove injector cups in the MACK MP7, MP8, MP9 and MP10.
This works on brass cup 85104134 and stainless steel cup 21515329.
Often used with 9998249
With this kit, you don't need 88800460
Improved injector sleeve installer for stainless steel sleeve.
Application: Volvo trucks
OEM No.ref.: 88800387, 9986174, 88800513.
