Pin & Bushing Adapter suitable for Pivot Pin POA

Provides fast and effective removal of even the most seized pivot pins, found on a variety of equipment.

• 20 tons of pulling power
• Eliminates the risk of damage to nearby components
• Machined components manufactured from high-grade metals for strength and durability
• Black oxide finished coating resists corrosion

Originally designed to remove Jost 5 th  wheel bracket pins, the versatile design of the aluminum spacer tube not only services these, but will extract pivot pins up to 6.5” x 2.45”, allowing technicians to service a variety of equipment with one tool.

Easily removes pivot pins on loaders, excavators, tractors and a variety of farm equipment.

Traditional methods for removing Jost 5 th  wheel bracket pins require the technician to rely on a slide hammer—a time consuming, physically demanding process that can damage nearby components and wreak havoc on the technician’s wrists. The Universal Pivot Pin Extractor features a Hammer Adapter that “shocks” the bracket pin loose before the puller is connected, drastically reducing service time and the risks of musculoskeletal injuries.

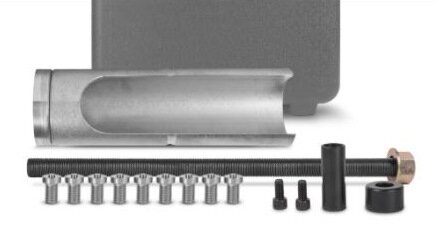

The kit includes two sizes (1⁄2″ and 5⁄8″) of weld-on adapters, each featuring a centering nub on the mating side to ensure correct alignment during the welding process. Replacement packs of weld-on adapters are available separately in either size.

Jost Application
• JSK790111-03
• JSK37U
• JSK37UA
• JSK37US
• JSK37UW
• SK75014-03
• SK75014-01

Notes
• Kit must be used with the P in & Bushing Starter Kit  or can alternately be
used with the 20 Hydraulic Cylinder.   Please note , when utilizing the  Hydraulic Cylinder , a hydraulic pump will still be required.
