INDUSTRIAL QUALITY 30 / 15 Ton Two Stage Jack High Lift Capacity

High Lift Capacity: 2 Stages, 15, 30T (STOCK ITEM)

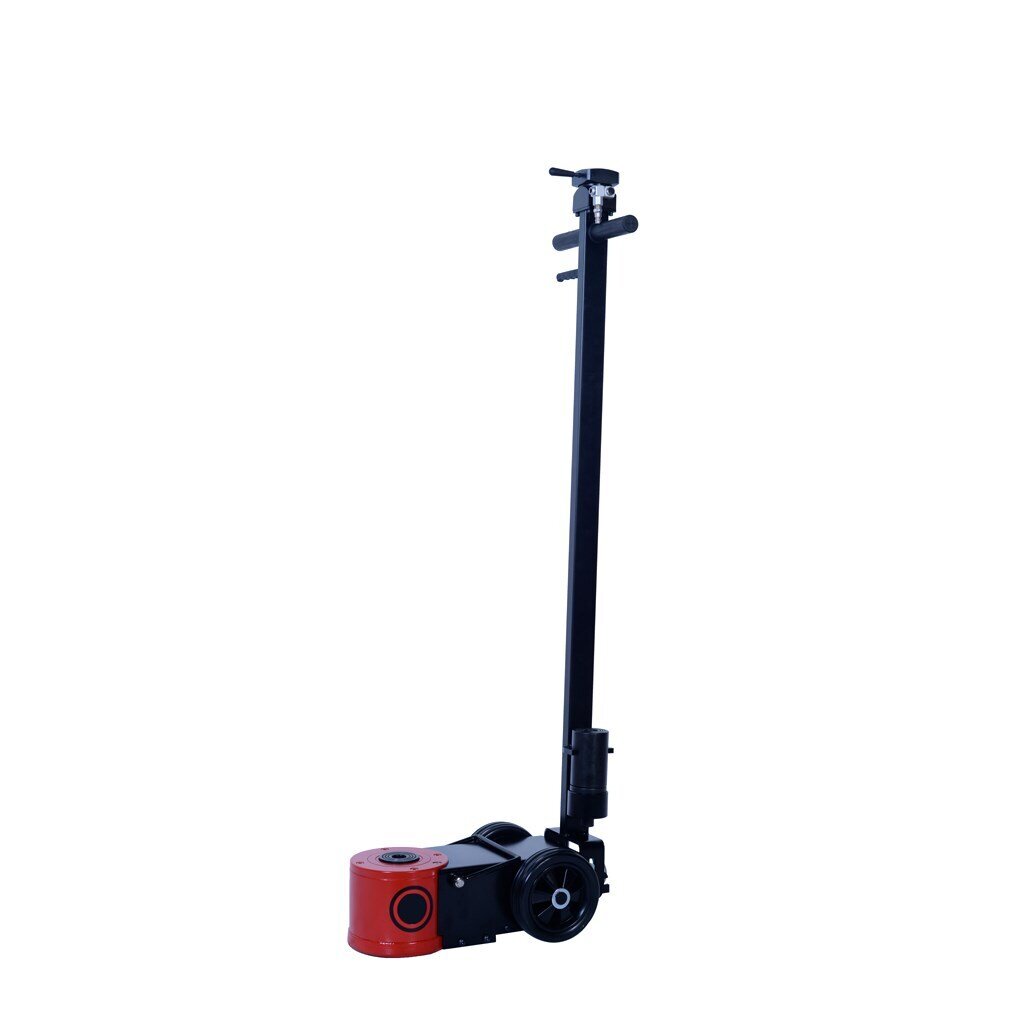

For the ultimate workshop jacks you can’t go past this  range. Designed to intensive use in heavy vehicle workshops, mines and industrial plants. This 30T air hydraulic trolley jack offers greater durability then competitors due to a new air hydraulic system design. Greater durability is also achieved from hard chrome plated piston rods, top and bottom sealing and anti dust rings. The large base provides high stability. The cp85030 is easy to maneuver on the large soft rubber wheels. The long 1.3m handle has 3 locking angles, 90°, 45°, 180°. These air hydraulic 30 ton jack lift trucks and buses fast and are supplied with extensions for extra height when needed on high axle vehicles. At the end of the handle is an easy to use control for lifting and lowering with precision.

Max Height 472mm

Min Height 150mm

1st Stage Height @ 30 Ton: 223mm
2nd Stage Height @ 15 Ton 289mm
Adaptors: 45mm & 75mm gives you a maximum height of 409mm.

Benefits

High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety

Features

Maximum height: 16.1 in. / 409 mm
Air powered piston
Includes 2 extensions for higher lifting – Stored on handle for transport
Piston and pump
Anti dust seals
Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels
