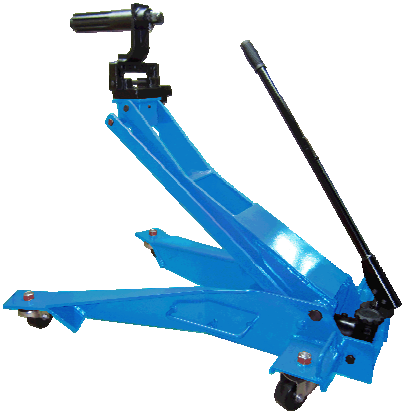

H/D Truck Clutch & Flywheel Caddy

Heavy Duty Truck Clutch & Flywhee Caddy
Handles 14" and 15-1/2" truck clutch's and flywheels. Swivel casters provide easy maneuverability makes it simple for a one person job. Includes a 2" and 1-3/4" spline shaft. Conveniently located release valve and 360 degree rotating pump handle, allows jack to be operated in any work position.

• Unique linkage design raises the load from horizontal to vertical as the pump is cycled
• Eliminates any lifting of the clutch by the operator
• Handles 14 inch and 15-1/2 inch clutch assemblies weighing up to 250 pounds
• Pump handle rotates a full 360 degrees for use in any position
• Handles 14" and 15½" clutch assemblies weighing up to 250 lbs. Swivel casters provide easy maneuverability. Includes a 2" splined shaft with a 1¼" pilot to aid in alignment.
• 360º swivel head.
• Minimum height of 15" allows access below side faring.
• When raised, centerline of clutch will be 38¼" off floor.
Floor space is 32-3/8" long by 24½" at widest point.
Makes the task an easy, one-person job.
