Brake Caliper Slogging Wrench Kit

Brake caliper slogging wrench set 5 pc E18/E20/E24/M24/M26 Dr.3/4" for brake caliper screws on commercial vehicles

  •        Designed for assembly and removal of the brake caliper screw connections on commercial vehicles

•         Dr.3/4" x Torx® E18, E20, E24, and Spline M24, M26

•         Torx® Applications: E18 - Man TGL/TGM, E20 - Man TGL/TGM, E24 - Man TGA/TGS/TGX

•         Spline ( 12pt ) Applications: M24 -SAF, M26 - DAF XF/XF95/XF105/XF106

These caliper mounting bolts are tightened to very high torque figures (an E18 Torx® bolt for example can be typically tightened to 480 Nm), so these are slogging wrenches, designed with a 3/4" drive and two impact striking faces, to get the bolts loose.

When refitting and tightening, each wrench usefully includes a laser-etched formula to assist in working out the correct tightening torque figures to take into account the additional length of the wrench.

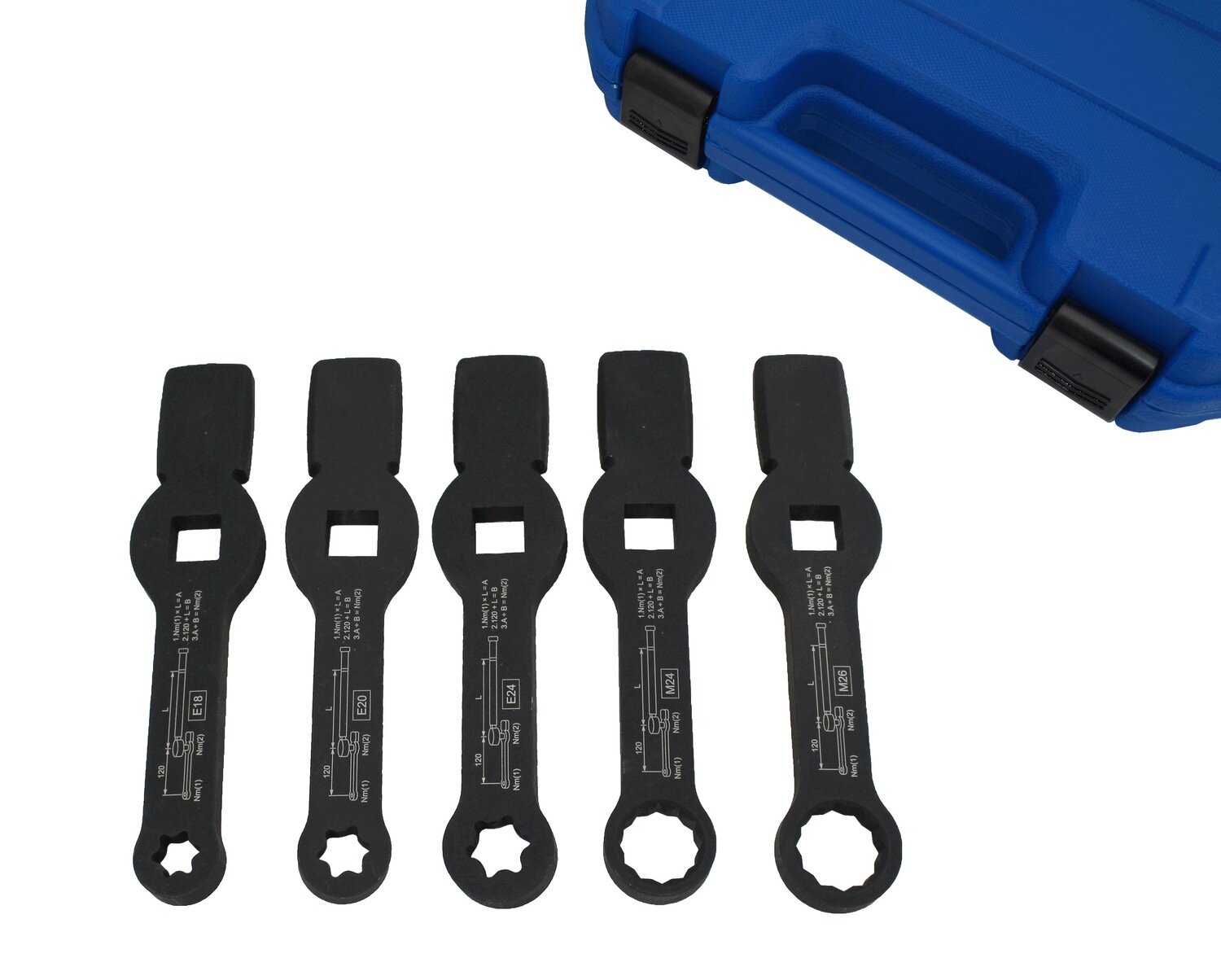

Three Torx® and two 12-point spline wrenches make up the set. Torx®: the E18 and E20 wrenches fit MAN TGL/TGM models, with E24 fitting the MAN TGA/TGS/TGX range. The M24 12-point spline wrench fits SAF models and the M26 wrench fits DAF XF/XF95/XF105/XF106 models.
